Product Details:
|
| Connector Line: | SCSI Connector | Connector Name: | MDR Connector |
|---|---|---|---|
| No. Of Pin: | 100Pin | Connector Gender: | Male |
| Connector Type: | IDC Crimping | Pitch: | 1.27mm Pitch |
| Contact Material: | Phosphore Bronze | Gold Plating: | 1U", 3U", 5U", 10U", 30U" |
| Highlight: | 1.27mm Pitch SCSI Connector,IDC Crimping SCSI Connector,Male MDR Connector |
||

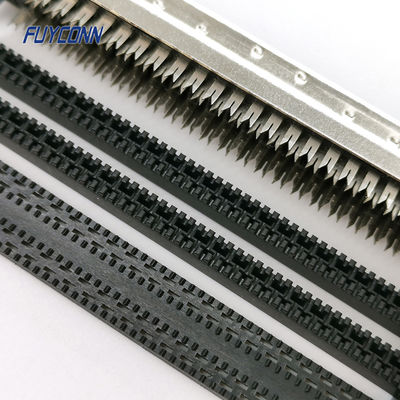

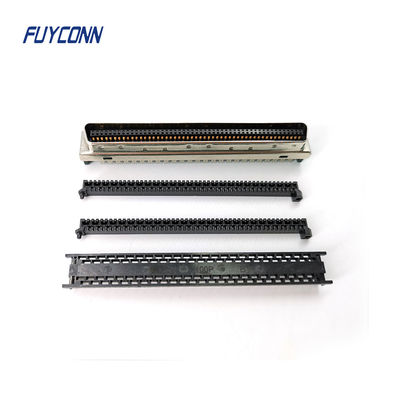

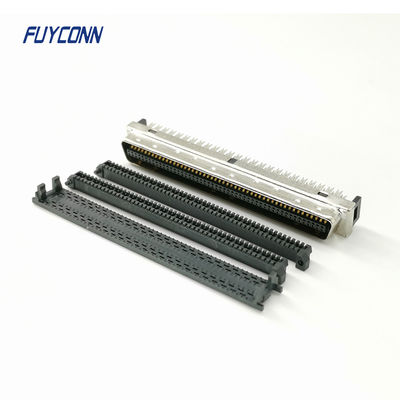

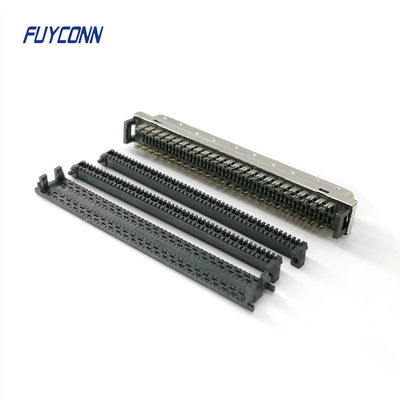

Male 100pin SCSI Connector, IDC Crimp Cable DB type SCSI Servo connector with 1.27mm pitch SCSI Mini D Ribbon MDR Connector
SCSI (Small Computer System Interface) Servo Connector, is a kind of more special interface bus, equipped with a variety of types of peripherals to communicate. Advanced High Speed A versatile, high-speed, and low-cost method of interconnecting a varietyof computer peripherals and consume electronic devices.
Product features
| No. of pin | 68pin |
| shell : | Stell, Nickel Plated |
| Housing : | PBT |
| Contacts : | Phosphor bronze |
| Gold plating | 1U", 3U", 5U", 10U", 15U",30U" |
Electrical characteristics
| Current Rating | 1AMP |
| Withstanding Voltage | 500v for one minute |
| Insualtion Resistance | 500MΩ min (at DC500V) |
| Contact Resistance | 35MΩ Max) |
| Operating temperature : | -55°C to +105°C |
Type: SCSI Connector
