Product Details:
|
| Connector Name: | Eurocard Connector | Connector Line: | Din41612 Connector |
|---|---|---|---|
| Connector Type: | Right Angle Pcb Connector | Gender: | Female Receptacle |
| Pitch: | 2.54mm Pitch | No. Of Pin: | 48pin 96pin |
| No. Of Rows: | 3 Rows | ||
| Highlight: | Female Eurocard Connector 3 Rows,DIN 41612 Right Angle Eurocard Connector,DIN 41612 Right Angle Connector |
||

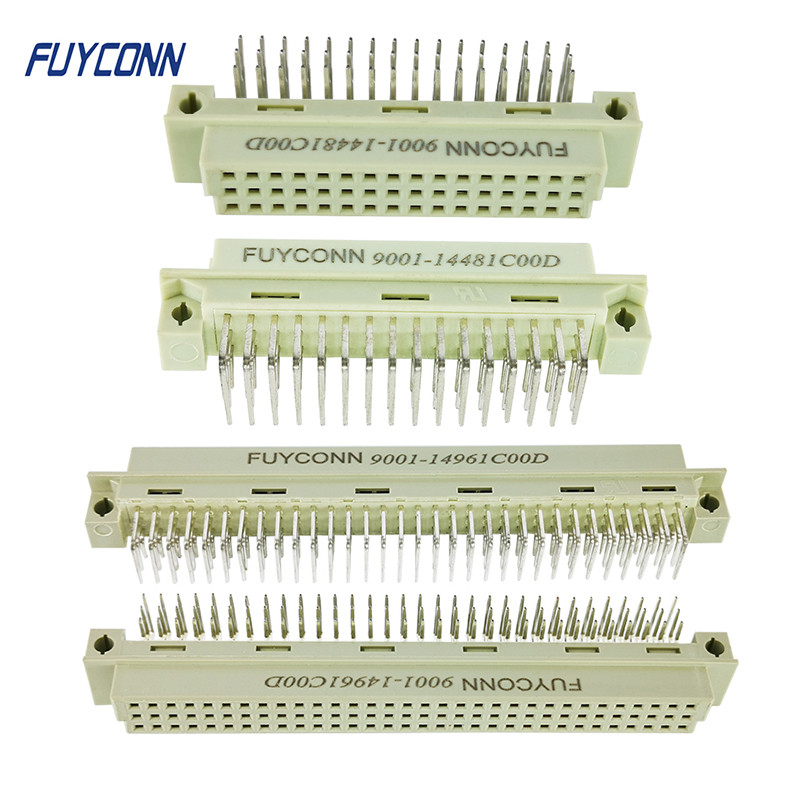

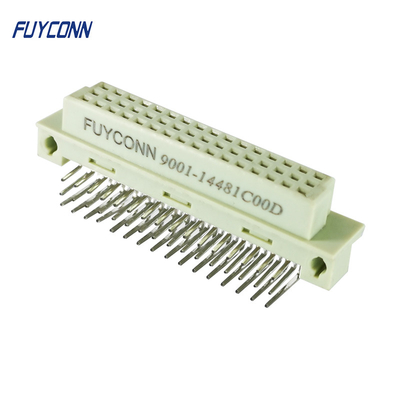

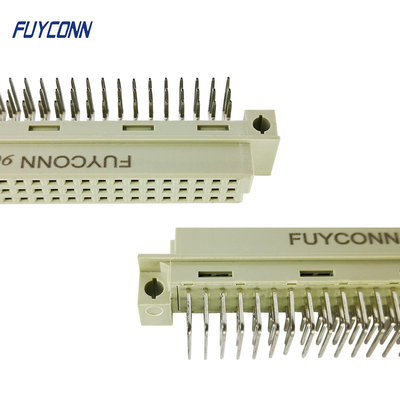

16 32 48 64 96 Pin 3 rows PCB Right Angle Euro DIN41612 Connector, 3*32pin 64pin 96pin R/A PCB Female Eurocard connector

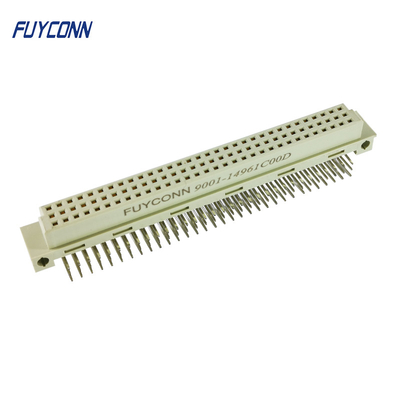

Right Angle Receptacle 96P DIN 41612 Connector Euro R Type PCB Connector
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system. They were also used by NuBus. The standard has subsequently been upgraded to international standards IEC 60603-2 and EN 60603-2.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 96 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.
Technology Parameters
Application
