Product Details:
|
| Product Name: | Centronics Connector | Product Line: | DDK Connector |
|---|---|---|---|
| Type: | Solder Connector | Connector Style: | Cable Plug |
| Number Of Terminal: | 14 / 24 / 36 / 50 Pin | Gender: | Male |
| Metal Hood: | 57-30 | Contact Material: | Brass |
| Highlight: | DDK Ribbon Connector,Solder Cup DDK Connector,Male DDK Connector |
||
DDK 57-30 Ribbon Connector Solder Cup 5730140 5730240 5730360 5730500 DDK Connector
Catalog: CENTRONIC CONNECTOR.pdf

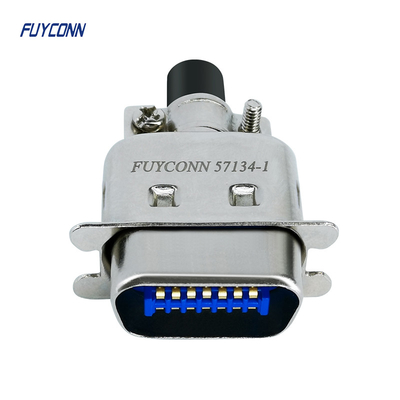

DDK 57-30 Connector Male Solder Cup Centronics Connector w/ T Shape Metal Hood

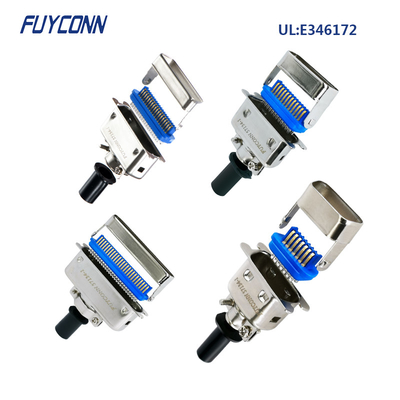

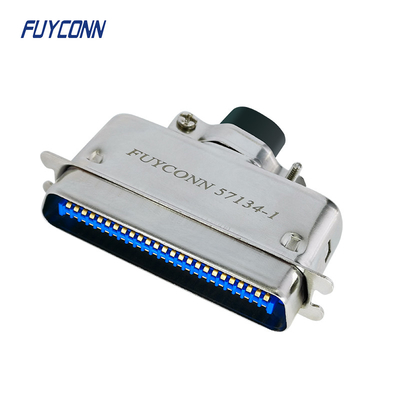

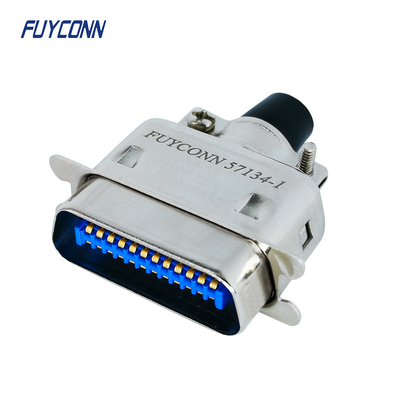

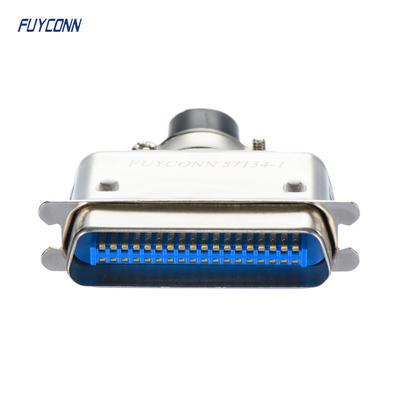

Centronic Male 57-30360 Connector, Straight Angle 14pin 24pin 36pin 50pin Solder Centronic Connector with 180 degree metal cover
DDK 57-30 Cable Plug Top Cable Entry Solder Centronics Connector
FUY57134 180° Metal Hood Solder 36 pins Centronix Connector Male Plug Type
The Centronics 50-pin connector is arranged in two rows of pins each with 25 contacts. This connector is held in place by bail locks. The Centronics 50 connector is most often used by older SCSI-1 devices (scanners, storage devices, etc.). A slight variant of the Centronics 50 connector is used in voice/data applications. This variant is commonly called a Telco connector.
Product Features
|
Product Type: |
Centronics Solder Connector |
|
Product Line: |
Champ Connector |
|
Gender: |
Male |
|
Connector Style: |
Plug |
|
Certerline : |
2.16mm(0.85in) |
|
Number of Position: |
36 pin |
|
Contact Plating: |
Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
|
Insulator Color: |
Black or Blue |
|
Shielded: |
Yes |
|
Orientation: |
180 Degree Cable Exit |
|
Mating connector lock: |
Screwlocks |
|
Cover |
Metal Hood |
Materials
|
Contact Material: |
Brass |
|
Insulator: |
PBT (UL 94-V0) |
|
Shell |
Nickel Plated Steel |
|
Housing Material: |
Nickel Plated Steel |
Electrical Character
|
Current Rating: |
5Amp |
|
Withstanding Voltage: |
AC 1000v r.m.s |
|
Insulation Resistance: |
1000 Megohms Minimum at DC 500V |
|
Contact Resistance: |
25M∩ Max Mated |
|
Operation Temperature: |
-55°C to +105°C |
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Board Application | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Avilable in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
|
Mates with industry compatible connector |
Application
|
1, VDSL Teleccom Equipment |
|
|
2, Computer Peripherals |
|
|
3, Communication Equipment |
|
|
4, RJ21 Cable |
|
|
5, Cable to Panel |
|
|
6, Cable to cable |
|
|
7, Computer terminal |
|
|
8, Telemetering |
|
|
9, Test Equipment |
|
|
10, Printer |
Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 14 24 36 50pin
Connector Style:Plug
Gender: Male
Centerline = 2.16mm [0.085in]
Conver Style: 180° Metal Hood
Insulator Color: Black or Blue
Insulator Type: Hard connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: 180°Cable Exit Angle, MD Type
Contact Person: Ms. Grace_ Zhong
Tel: (86) 18925547246
Fax: 86-0769-83690909
