Product Details:
|
| Product Name: | D-sub Connectors | Product Line: | Ribbon Connector |
|---|---|---|---|
| Contact Type: | Crimping Type | Number Of Terminal: | 9 15 25 37 Pin |
| Connector Style: | Receptacle | Gender: | Female |
| Highlight: | 15pin D-SUB Connectors,IDC Crimping D-SUB Connectors,Ribbon Cable D SUB Connector |
||

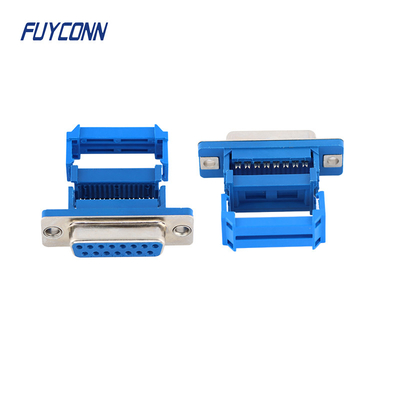

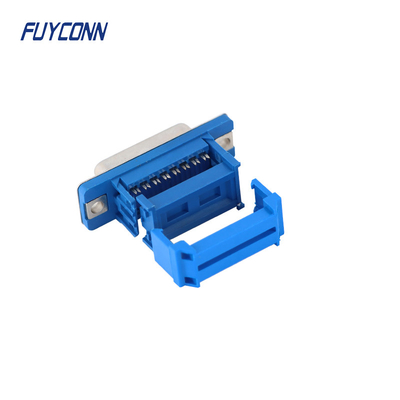

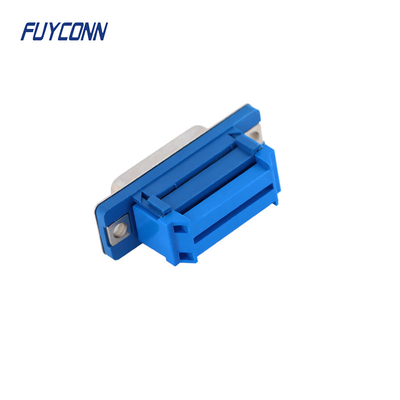

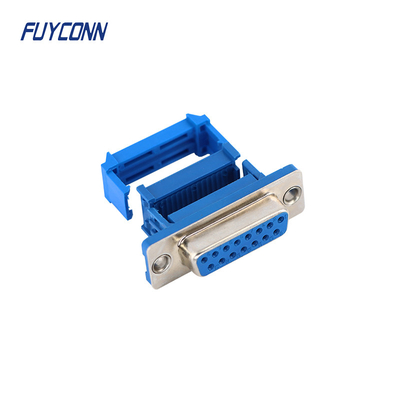

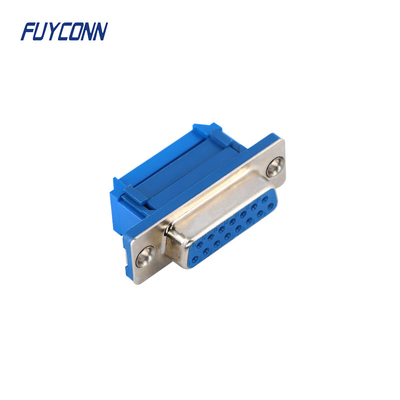

15pin Ribbon D-SUB connector Female IDC Crimping Ribbon Cable D SUB connector
D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
Detail Description
| Product Category: | D-SUB Connector |
| Type: | IDC Ribbon Connector |
| Number of Terminal: | 9pin 15Pin 25Pin 37pin |
| Rows of contact | 2 rows |
| Connector Style: | Receptacle |
| Gender: | Female |
| Insulator Color: | White, Black or Blue |
| Insulator Material: | PBT |
| Contact pin Material: | Brass |
| Shield Plating: | Nickel |
| Application: | Cable |
Technology Parameters
