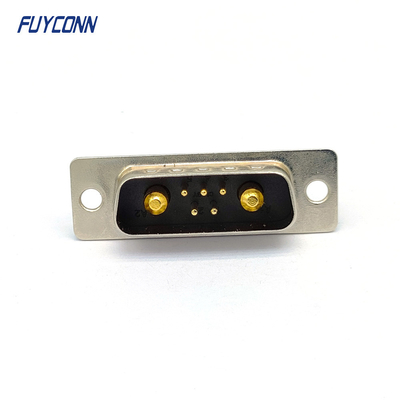

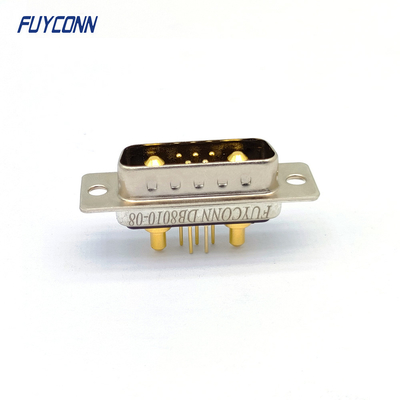

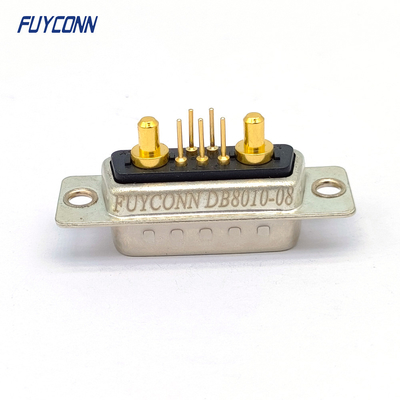

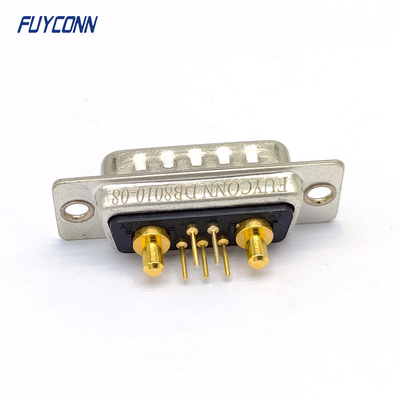

7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector

7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector
7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector
7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector 7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector 7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector 7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector 7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector

Large Image :  7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUYDB8010
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Contact Now

7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector

Description
Product Name: D-sub Connectors Product Line: 7W2 Connector
Terminal Type: Solder Cup Color: Black
Connector Type: High Current Connector Gender: Male
Number Of Terminal: 7pin
Highlight:

PBT D-SUB Connectors

,

7Pin D-SUB Connectors

,

7W2 High Current Connector

7Pin PCB 7W2 Male High current DB Connector, 7 way 7W2 Power Straight PCB D-sub Connecto

D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
Product Feature

1. Product Name:
D-SUB Connector
2. Product Line:
7W2 D SUB Connector
3. No. of pin
7Pin
4. Material:
PBT
5.Contact Type
PCB Straight
6. Gender
Male

Data Sheet

7Pin PCB Straight D-SUB Connectors , 7W2 Male DB High Current Connector 0
