Product Details:
|
| Connector Line: | 57 CN Series | Gender: | Male |
|---|---|---|---|
| No. Of Pin: | 14pin 24pin 36pin 50pin | Contact Material: | Phosphore Bronze |
| Gold Plating: | 1u" 3u" 5u" 10u" 15u" 20u" | Insulaiton Material: | PBT |
| Insulaiton Color: | Black Or Blue | Pitch: | 2.16mm |
| Connector Type: | PCB Straight | ||
| Highlight: | 36 pin centronics female connector,circuit board connector,36 Pin Male Centronic Connector |
||

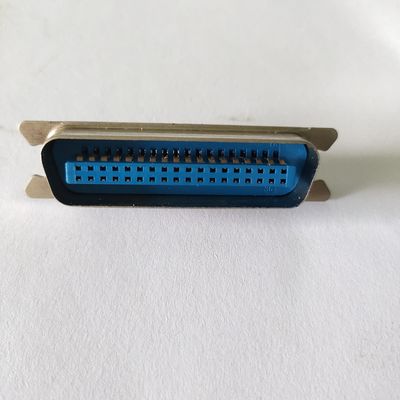

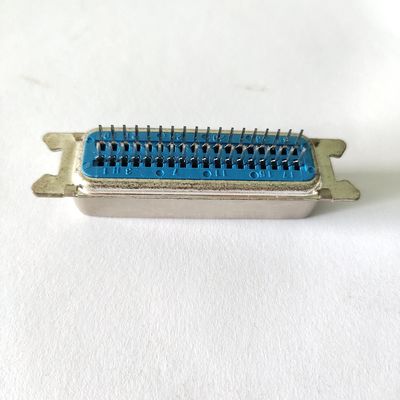

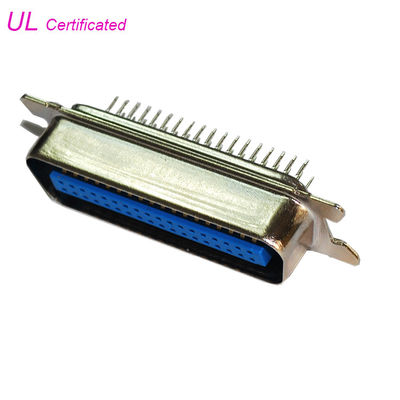

2.16mm Pitch 14pin 24pin 36pin 50pin Male Centronic PCB Straight Connector for PCB Board
The Centronics 36-pin connector is arranged in two rows of pins, each with 18 contacts. The connector is held in place by bail locks. The 36-pin connector is often used for parallel applications, especially for printers. It is also referred to as an IEEE-1284 Type B connector.
Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic PCB Type Connector
Number of Terminal: 50 36 24 14 pin
Connector Style:Plug
Gender: Male
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel + Tin
Shell: MD Type
Application: PCB Board
Advantage
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
Product features
| 1. Product Line: | Centronic Connector |
| 2. Connector Gender: | Male |
| 4. Number of Position: | 50 36 24 14 pin |
| 5. Contact Material: Copper Alloy | Phosphore Bronze |
| 6. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 7. Comb Material: | Thermoplastic |
| 8. UL Flammability Rating: UL-94-V0 | UL-94-V0 |
