Product Details:
|
| Insulation Material: | PPO | Color: | Black |
|---|---|---|---|
| Cover: | 90 Degree Plastic Cover | Contact Material: | Phosphore Bronze |
| Gold Plating: | 1u" 3u" 5u" 10u" 15u" 20u" | Pitch: | 2.16mm Pitch |
| Highlight: | female plug connector,d type connector |
||

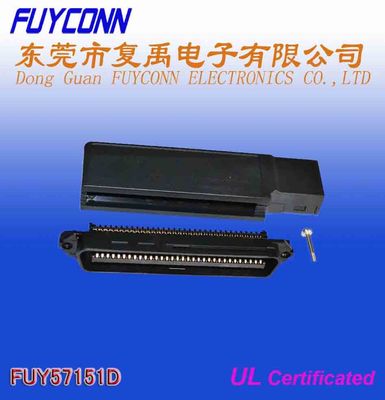

TYCO RJ21 64 Pin Centronic Champ IDC Plug Side Entry Connector with Plastic Cover Certificated UL
Tyco 32 pairs centronic connector 64pin male IDC Type with 90 degree plastic housing
This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.The Centronics 64-pin connector is arranged in two rows of pins each with 32 contacts. This variant is commonly called a Telco connector.
Detail Description
Product features
| 1. Product Line: | Centronic Connector |
| 2. Connector Gender: | Male |
| 4. Number of Position: | 64 pin |
| 5. Contact Material: Copper Alloy | Phosphore Bronze |
| 6. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 7. Comb Material: | Thermoplastic |
| 8. UL Flammability Rating: UL-94-V0 | UL-94-V0 |
| 9. Housing | 90 degree Plastic Housing |
Electrical Specifications
| 1. Current Rating: | 5Amp |
| 2. Voltage rating: | DC 1000v per minute |
| 3. Insulator Resistance: | 1000Mn MIN.(at 500V DC) |
| 4. Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment |
| 2, Computer Peripherals |
| 3, Communication Equipment |
| 4, RJ21 Cable |
| 5, Cable to Panel |
| 6, Cable to cable |
| 7,Computer terminal |
| 8,Telemetering |
| 9,Test Equipment |
| 10, Printer |
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications |
| Avilable in Plug & Socket Style |
| Terminal Option with various types |
| Connector and hood sold as complete assembly |
| Avilable in low profile hood style |
| Metal shell provides grounding and shielding capability |
| Mates with industry compatible connector |
Advantage:
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
